Fast Cutting Speed Cnc Foam Cutter Machine Automated Robust Construction

Fast Cutting Speed Horizontal Foam Cutting Machine Main application:

automotive interiors (seats, headrests, sound insulation cotton), furniture manufacturing (sofas, mattresses, pillows), packaging industry (precision instrument cushioning packaging), sporting goods (sports protective gear, yoga mats), toys and models (plush toy fillings, Cosplay props), etc.

Fast Cutting Speed Horizontal Foam Cutting Machine Motion System
· Drive System: Typically uses a precision ball screw or rack and pinion to achieve high-precision, high-speed linear motion.
· Guide Rail: High-precision linear guides are used to ensure smooth, backlash-free, and low-friction motion.
· Drive Axis: Typically a three-axis (X, Y, Z) system.
· X/Y Axis: Controls the horizontal movement of the cutting head, determining the contour of the cut surface.
· Z Axis: Controls the vertical movement of the cutting head, used for adjusting cutting depth, performing three-dimensional curved surface cutting, and picking up the cutter head for air movement.

Fast Cutting Speed Horizontal Foam Cutting Machine workflow:

programming → material fixation → automated cutting → finished product removal. Each step relies on the precise coordination of these components, ultimately achieving efficient, high-quality, and flexible automated processing of sponge materials.

Fast Cutting Speed Horizontal Foam Cutting Machine Control System

1. CNC System
· Function: Serves as the brain of the machine, receiving instructions (G-code) from the computer and controlling the movements of the servo motors and cutting head.
· Components: Includes a main controller, servo drives, servo motors, etc. It ensures that the cutting head moves strictly according to the preset path, speed, and depth.
2. Computer and Software
· CAD/CAM Software: Operators first use CAD software to design a product or import a 3D model. CAM software then converts the model into cutting path instructions (G-code) that the machine can understand.
· Nesting Software: A crucial function that automatically or manually arranges multiple patterns to be cut on the material sheet for optimal alignment, maximizing material utilization and minimizing waste.
· Control Software: Used to send G-code to the machine, monitor machine status in real time, and set cutting parameters (such as speed and cutter head type).

Fast Cutting Speed Horizontal Foam Cutting Machine Frame and Bed
· Function: Serves as the foundation of the entire machine and requires high stability and rigidity to resist vibrations during cutting and ensure precision.
· Material: Typically made of high-strength steel or aluminum alloy, precision welded, and stress-relieved

Fast Cutting Speed Horizontal Foam Cutting Machine basic data:

Fast Speed Cnc Foam Cutter Machine

Fast Speed cnc foam router

Robust Construction Cnc Foam Cutter

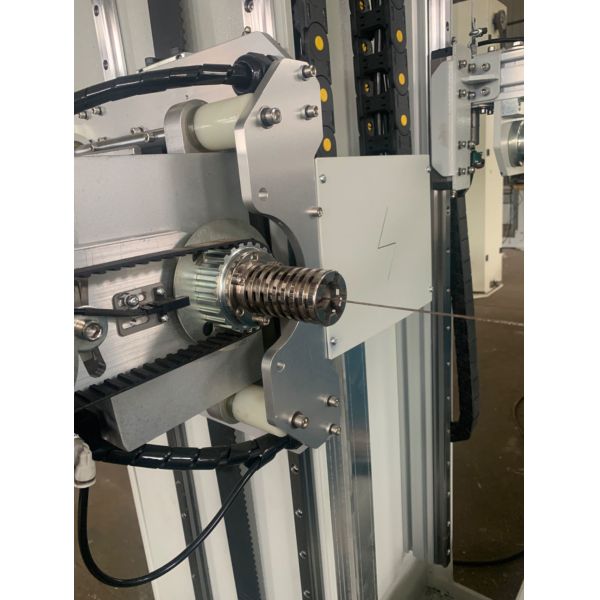

Fast Cutting Speed Cnc Foam Cutter Machine Automated Robust Construction Images
